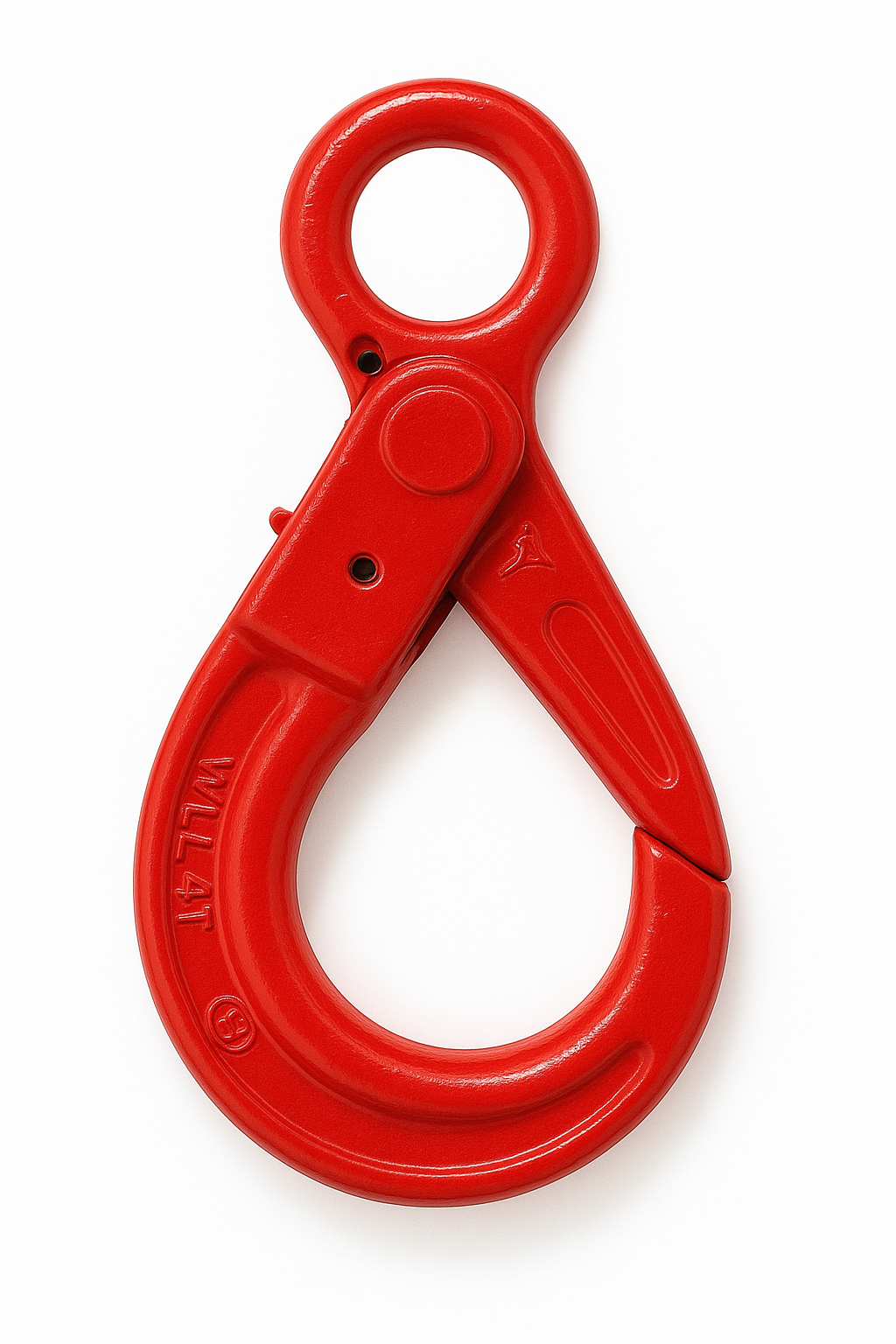

Hak bezpieczny, oczkowy klasa 8 typ 8-Bo
Dodaj do ulubionych
Dodaj do ulubionych
OPIS
Opis produktu: Hak bezpieczny, oczkowy klasa 8 typ 8-Bo

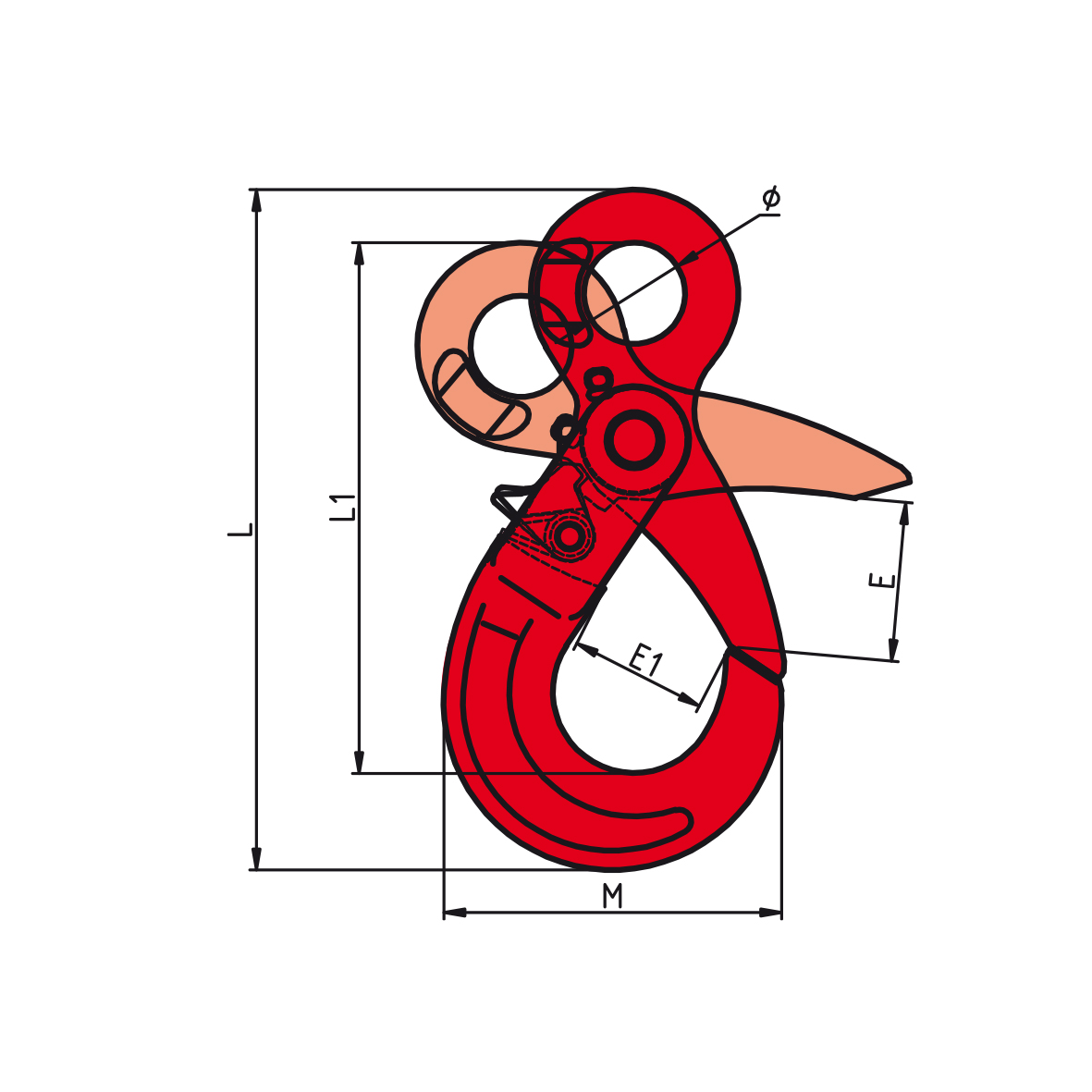

Parametry
| Kod produktu |
Rozmiar (mm) |
DOR (t) |
a (mm) |
b (mm) |
c (mm) |
d (mm) |
h (mm) |
l (mm) |
m (mm) |
s (mm) |
t (mm) |
Masa (kg/szt.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8-Bo-6 | 6-8 | 1,12 | 35 | 23 | 10 | 10 | 23 | 142 | 30 | 18 | 108 | 0,5 |
| 8-Bo-8 | 7/8-8 | 2 | 45 | 30 | 14 | 10 | 28 | 176 | 37 | 22 | 133 | 1,5 |
| 8-Bo-10 | 10-8 | 3,15 | 55 | 36 | 15 | 12 | 36 | 216 | 44 | 28 | 165 | 1,5 |
| 8-Bo-13 | 13-8 | 5,3 | 70 | 45 | 20 | 16 | 47 | 265 | 55 | 36 | 199 | 3,2 |
| 8-Bo-16 | 16-8 | 8 | 90 | 58 | 22 | 20 | 55 | 328 | 73 | 37 | 250 | 6,1 |
| 8-Bo-20 | 18/20-8 | 12 | 101 | 65 | 30 | 21 | 70 | 415 | 89 | 41 | 272 | 7,5 |
| 8-Bo-22 | 22-8 | 15 | 112 | 70 | 36 | 27 | 74 | 425 | 92 | 49 | 315 | 12,3 |
